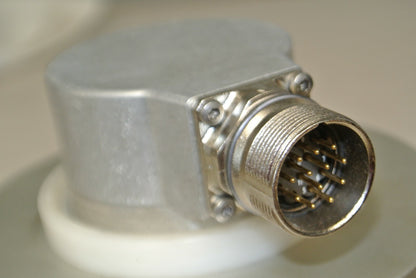

HEIDENHAIN 376 840-C8 / ROD 420 5000 27S12-03 INCREMENTAL ENCODER / USA STOCK

THANKS FOR LOOKING!!!

You are buying -- USED

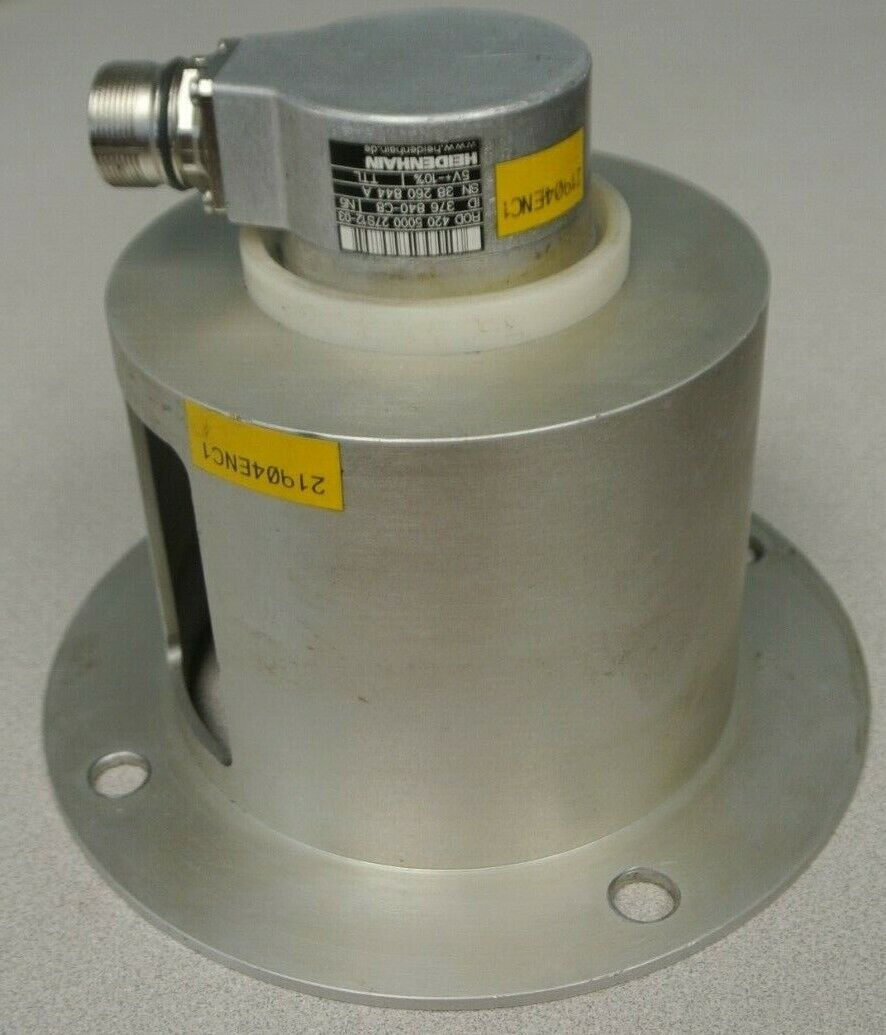

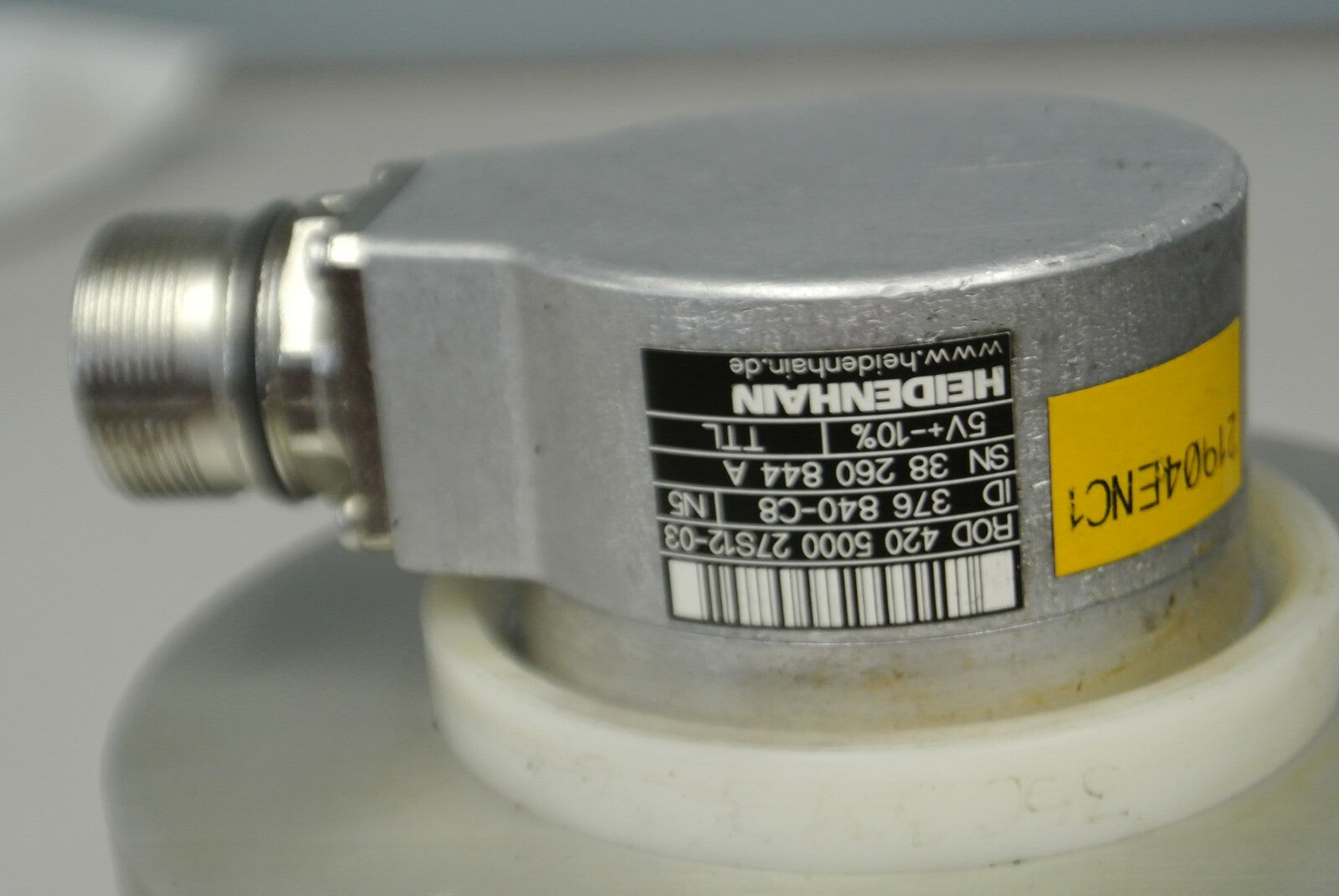

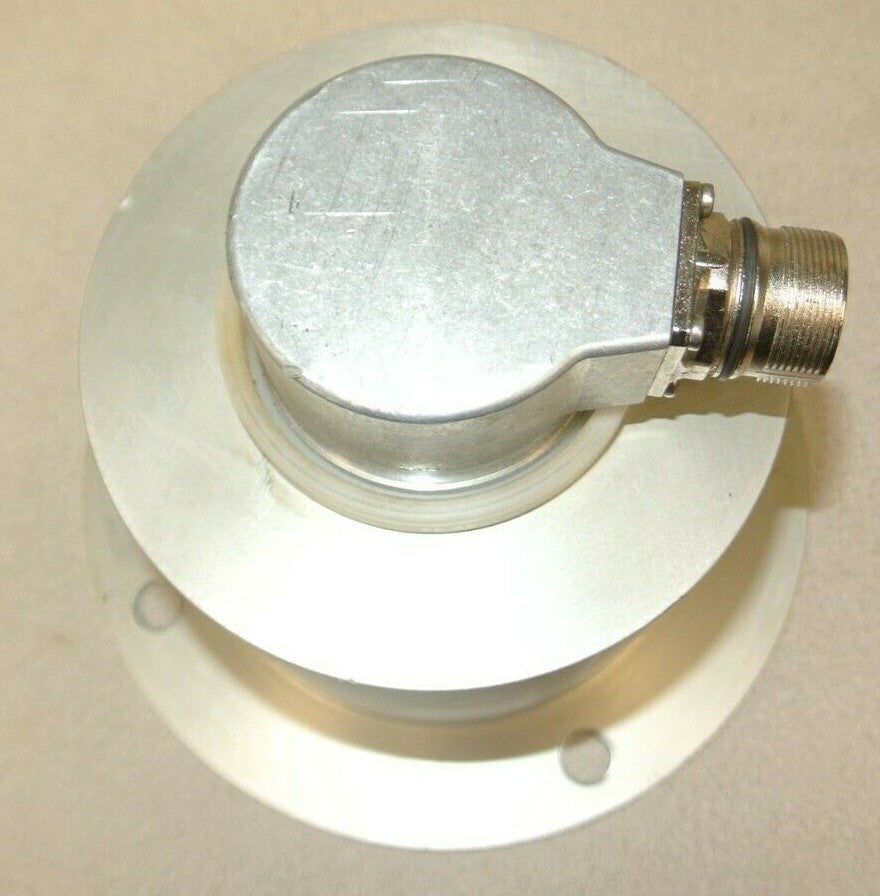

HEIDENHAIN INCREMENTAL ENCODER

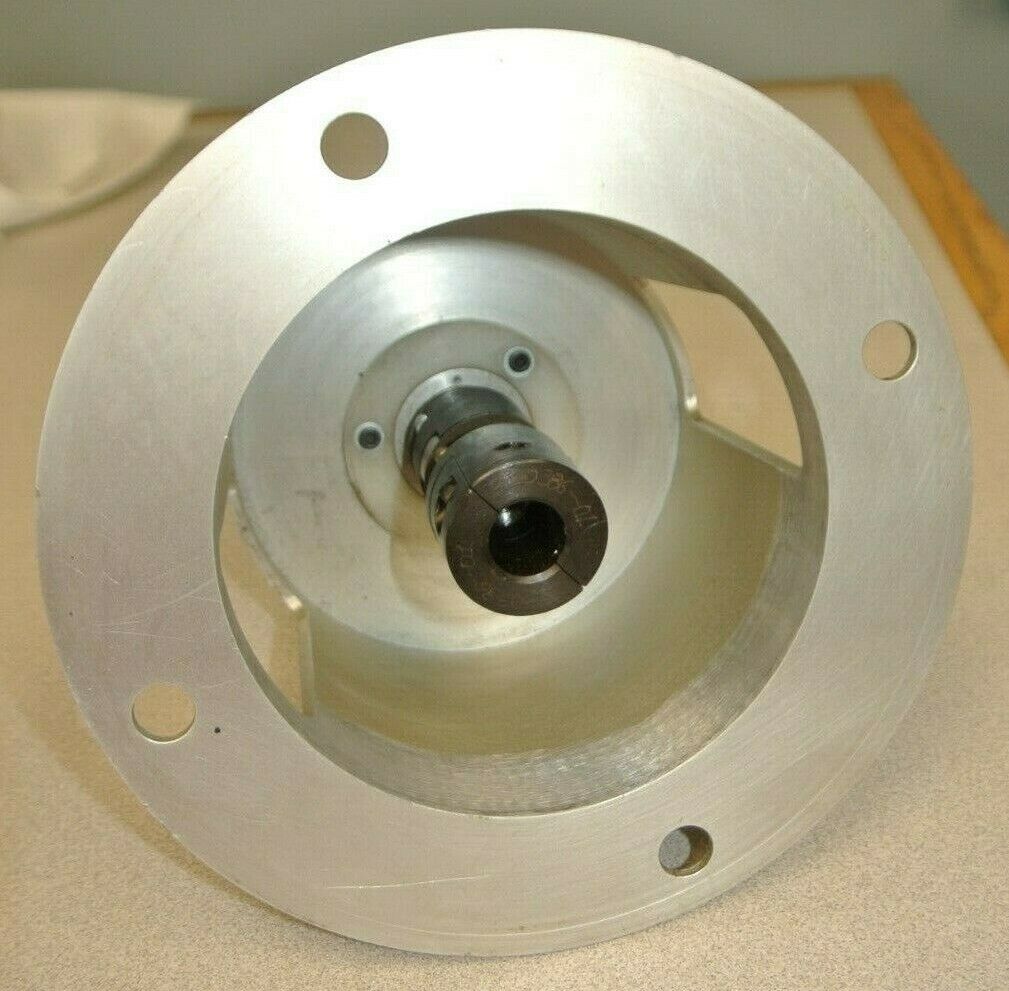

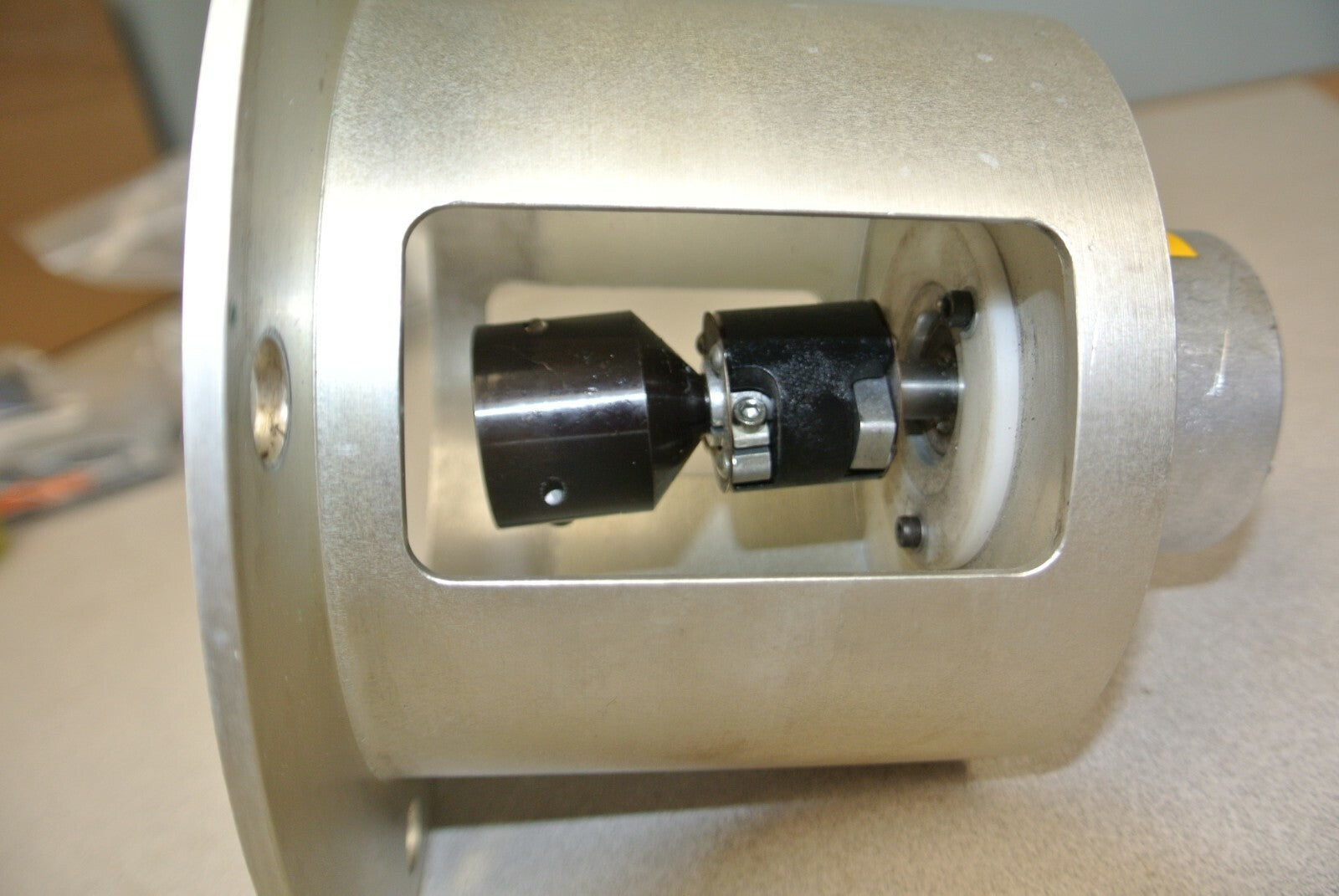

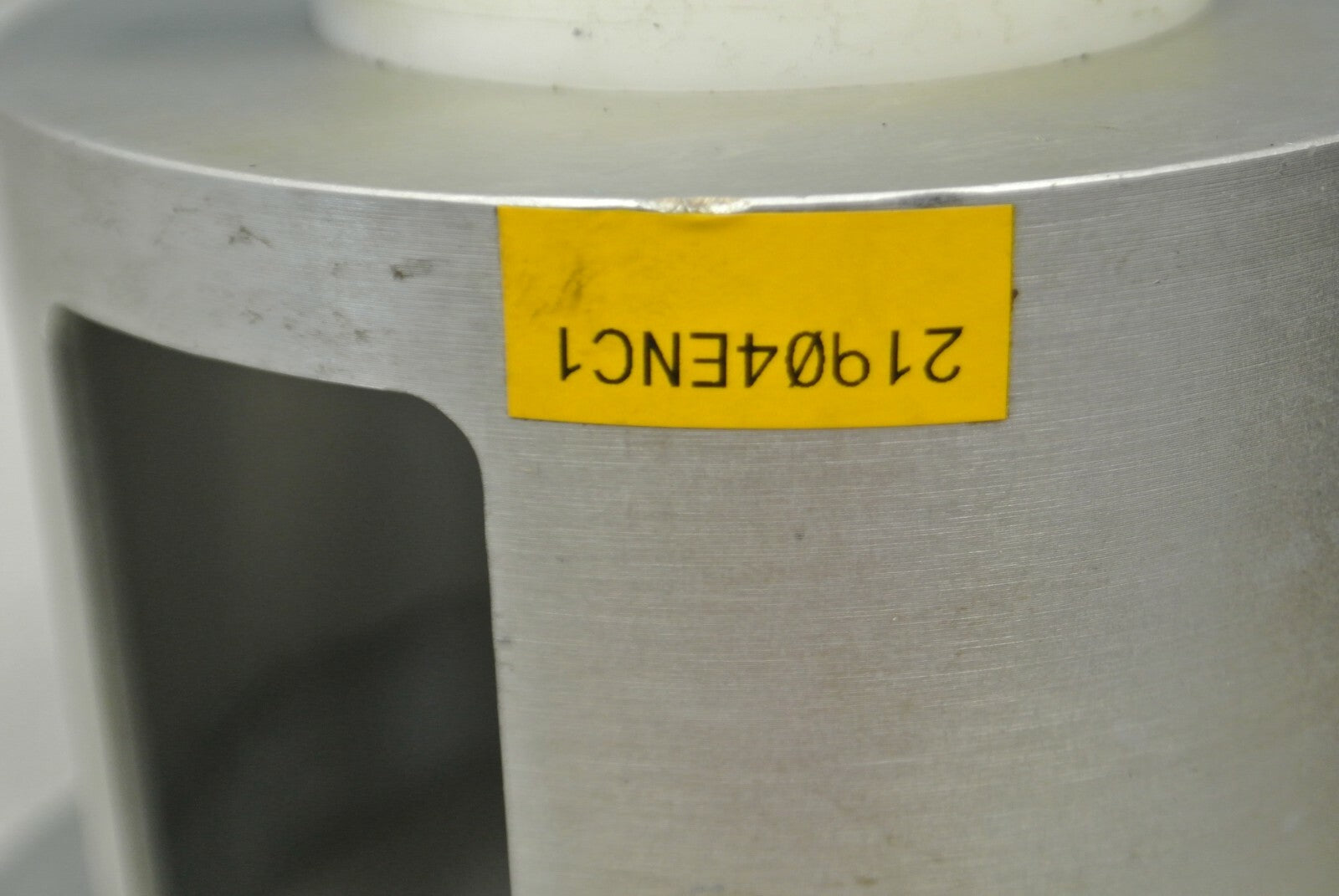

with HOUSING & FLEXIBLE COUPLING on 10mm SHAFT

Incremental Signals : TTL

Line count : 5000

Cutoff frequency -3dB : --

Scanning frequency : ≤ 300 kHz

Edge separation a : 0.43≥µS

System Accuracy : 1/20 of Grating Period

Power supply : 5V±5%

Current consumption (without Load) : ≤120mA

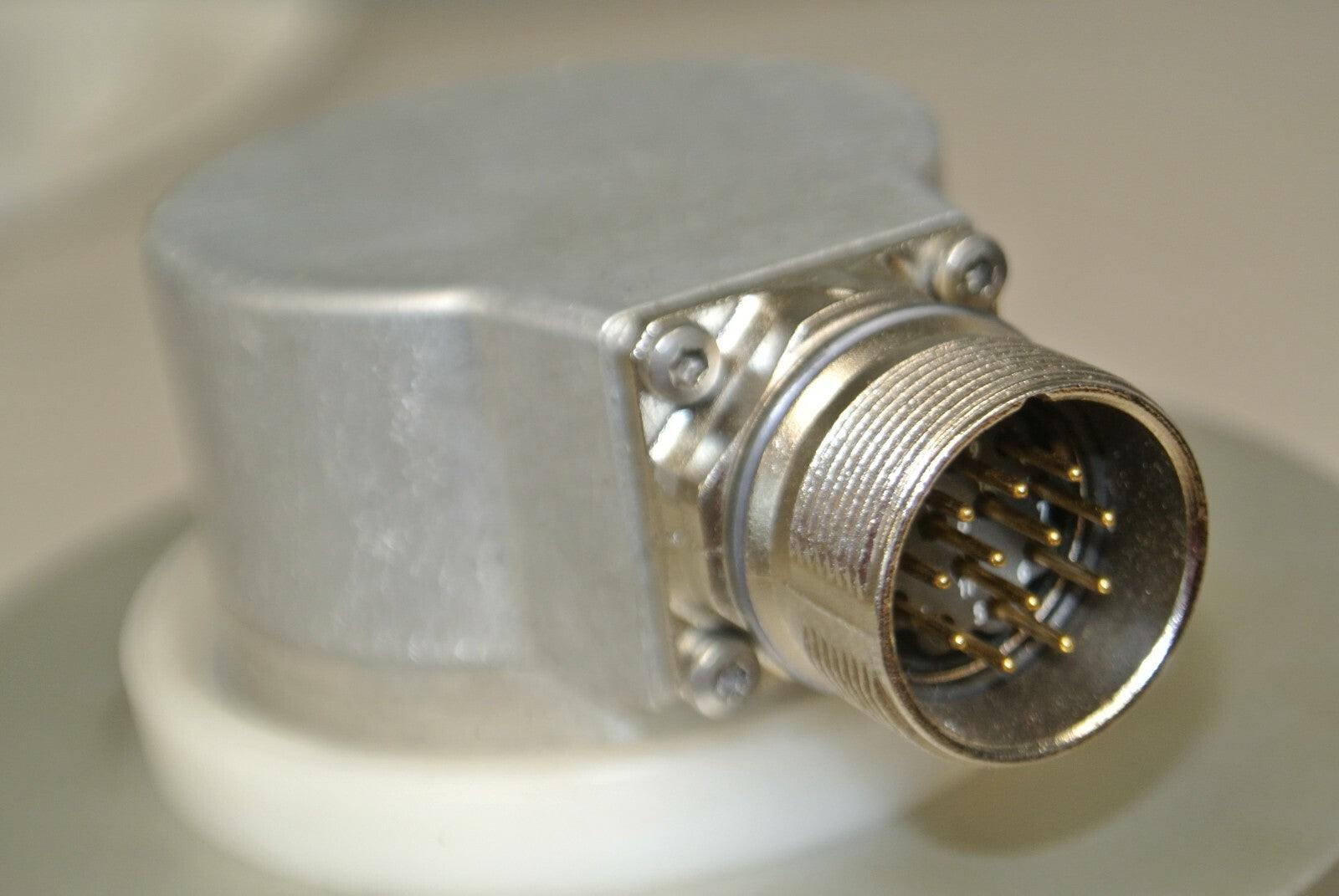

Electrical connection via : Flange socket M23, radial and axial ****

Shaft : Solid Shaft D =10mm

Mech. perm. speed n : ≤12 000 rpm

Starting torque at 20 °C : ≤0.01 Nm (at 20 0 C)

Moment of inertia of rotor : 2.6 · 10 -6 kgm 2

Shaft Load : Axial 10 N/radial 20 N at shaft end

Vibration 55 to 2000 Hz : ≤ 300 m/s 2 3) (IEC 60 068-2-6)

Shock 6 ms/2ms : ≤1000 m/s 2 / † 2000 m/s 2 (IEC 60 068-2-27)

Max. operating temp. :100 °C

Min. operating temp. :-40 °C

Protection IEC 60 529 : IP 67 at housing; IP 64 at shaft end4)

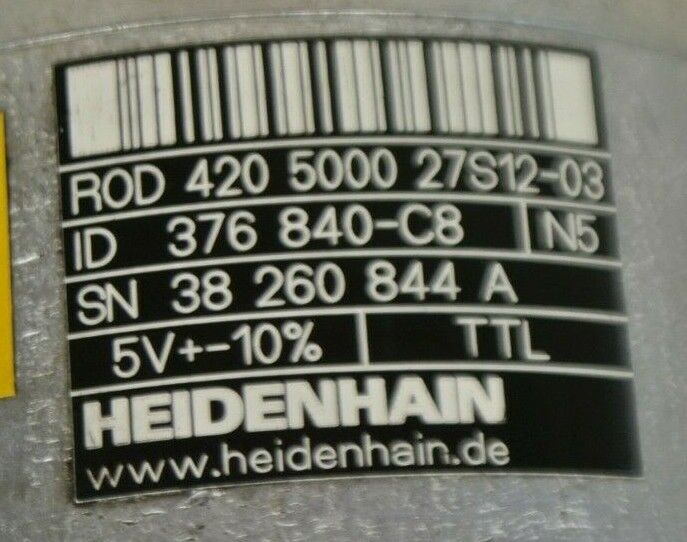

Mfr's p/n: 376 840-C8 / ROD 420 5000 27S12-03

~ from CLOSED-PLANT LIQUIDATION or SURPLUS-LOT PURCHASE ~

Warehouse Location =BB154D8 / *SM
